Infill Pattern Cheat Sheet

Stop guessing what your infill will look like and keep a physical reference right next to your printer. This cheat sheet showcases 16 different infill patterns side-by-side in a single, easy-to-read print. Each block is clearly labeled with embossed text, allowing you to quickly compare structural density, pattern geometry, and aesthetic appeal for your projects.

📏 Patterns Included

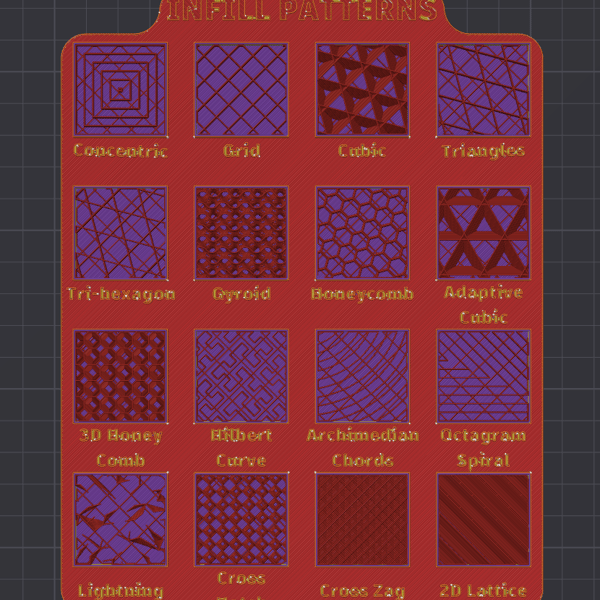

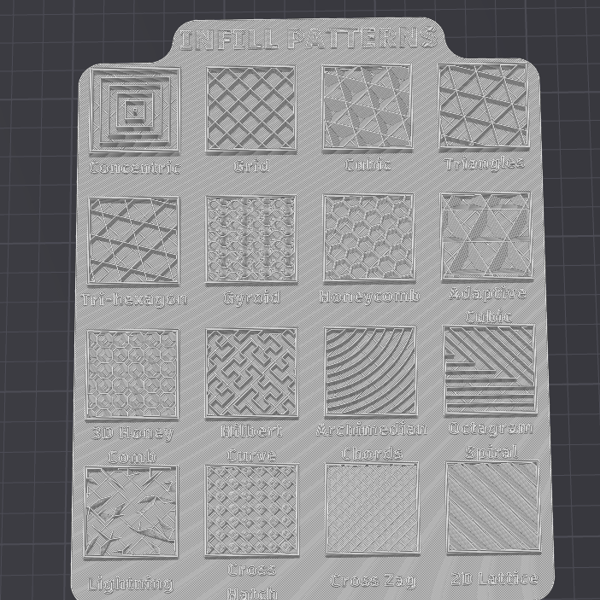

The model features a 4x4 grid displaying the following infill types:

• Concentric
• Grid
• Cubic
• Triangles
• Tri-hexagon
• Gyroid
• Honeycomb
• Adaptive Cubic
• 3D Honey Comb
• Hilbert Curve
• Archimedian Chords
• Octagram Spiral
• Lightning
• Cross Hatch
• Cross Zag
• 2D Lattice

⚙️ Print Settings & Profile

• Ready-to-Print: The included .3mf file is pre-configured with 16 distinct modifier blocks to generate each specific infill pattern automatically.
• No Top Layers: The top shell layers over the infill boxes are intentionally removed in the slicer settings to leave the internal structures permanently exposed for viewing.
